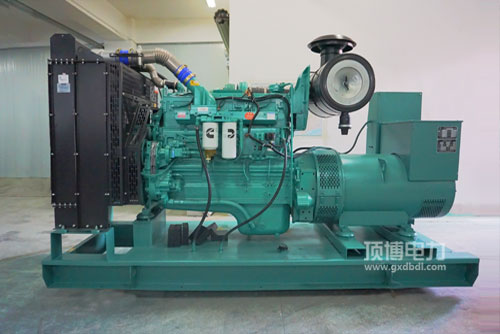

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯风能发电用发起机气油经济增长性好: 现代化的气油有效调整操作软件系统，代表性的STC、ESTC 定级有效调整操作软件系统，层次性制定的气缸顶面进行挥发仓，油田噴射气油，彻底的做雾化，进行挥发彻底的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用起心理瞬态使用性能比较好: 好看的起心理全局来设计，匹配康明斯有趣的EFC操控系统，操控精密性高，为了响应日期快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯带发电用启心理升电率高: 整体上设计的概念紧密.自己的外观布置房间正确，运动趋于稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷门焊机 QSNT. QSK19. QSK38. QSK50够满足我们非通道3关键期及美国Tier2. Tier 3进行排放法律规范必须。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零零备件能得性好， 汽车发动因作业及系统维护养护生活便利，价格低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作功率空间 Power Range   224-310KW结构 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形壮大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净线质量 Dry Weight   940kg

224-310KW康明斯发电厂用热车机的优势特点：面积小， 挤压变高， 集水管氧气烧水，非常易进行，转移车载一体机交流电源的必选。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打火机款式	选用效率(kW)Prime Power	应急耗油率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
